Diagrammatize the Installation of Adhesive Bonded Undercut Anchor

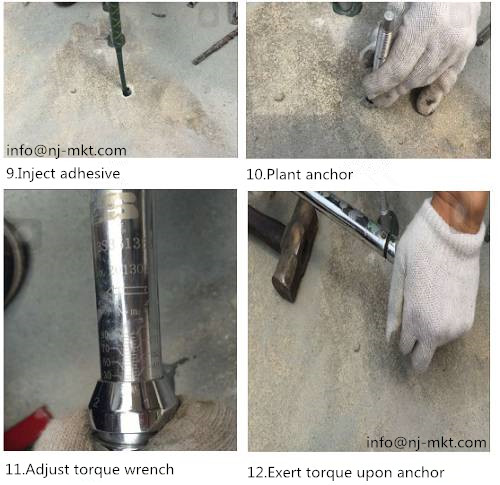

  Since 1990s, based on the principle of chemical anchor, improved inverted cone & adhesive bonded anchor was researched and developed in Europe. In 2006, this advanced design concept was introduced to China in the construction of high speed railway, creating the patented products as adhesive bonded undercut anchor, making technical breakthrough in worldwide anchoring field. The key thing of adhesive bonded undercut anchor is to inject mixed adhesive into drilled hole by using glue gun, then vortically insert inverted cone anchor bolt, realizing the anchorage with locking key effect of metal undercut anchor.

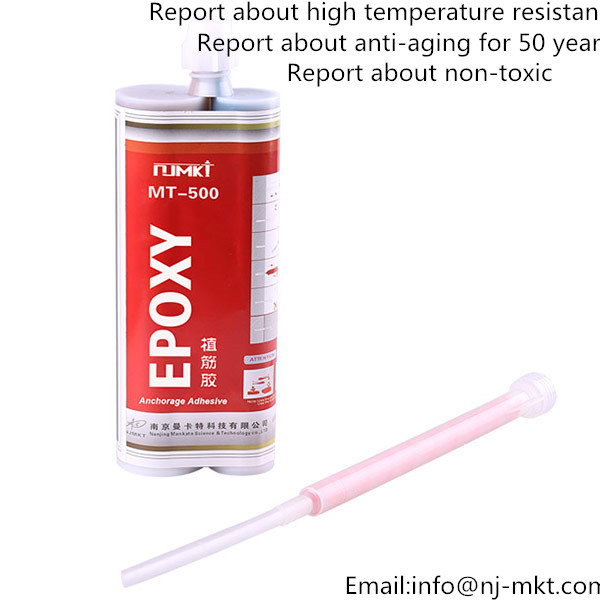

  Nanjing Mankate adhesive bonded undercut anchor is composed of anchor and adhesive, anchor rod, locking key, flat washer, expansion head and nut, its texture is carbon steel, alloy steel and stainless steel. Its matched adhesive is Nanjing Mankate MT-500 epoxy resin adhesive, abounds in the capacity of high temperature resistance and anti-aging for 50 years.

  Nanjing Mankate adhesive bonded undercut anchor is to produce locking key effect by using the wall on the bottom of drilled hole and locking key, meanwhile, together with anchorage adhesive to form anchoring. Adhesive bonded undercut anchor abounds in both the advantages of mechanical anchor, and seismic resistance and impact resistance of anchorage adhesive, besides, it also has great bearing capacity.

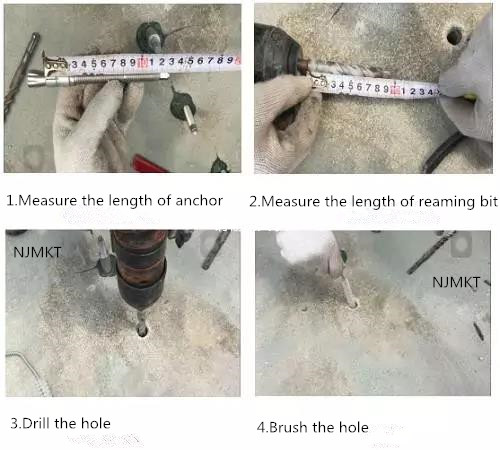

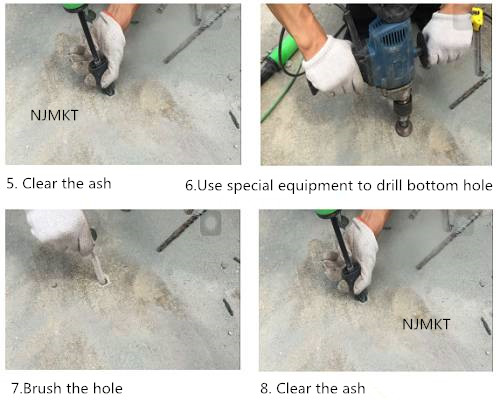

  Nanjing Mankate adhesive bonded undercut anchor is to enhance anchor’s safety loading, by using expanded-base tool with exocentric structure to expand the diameter of drilled hole inside concrete, then also adopting expansion head at the base of anchor. It is suitable for the connection and reinforcement of various curtain wall and steel structure, various pipelines of railway, tunnels and bridges, the fixing of cable rack. And nowadays, it is widely used in bridges, undergrounds and construction reinforcement.
  With higher quality and great service, free installation guide and technical support, you can also enjoy all-the-way tracking service. Looking forward to your inquiries!
